Product Name |
Low Voltage Wire Harness Testing Bench Top |
|
Power |
Electricity |
|
Type |
OEM/Customized |
|
Brand Name |
Cleanknow/Customized |
|
Model Number |
|
|
Display |
Monitor Size on demand |
|
Interface |
USB Interface/Manual |
Overview:
Low Voltage Testing system can be applied to test open, short and dislocation circuits of wire harness.
It is a high-performance wiring harness testing system for automobiles, ships, bullet trains and home appliances industry.
Function and brief characteristics:
1.Scanning Gun is supported;
2.Intelligent voice broadcasting;
3.Manual editing loop table is supported;
4.Testing Report is supported;
5.Loop Table input is supported;
6.Easy operation and high testing efficiency;
8.Support various printers, Any content to edit and print is available.
Technical Specifications and Data:
|
Test Point |
Up to 10000 test points can be supported |
|
Input |
2 input points (12-24V) |
|
Output |
2 relay outputs, 4 optical coupler outputs |
|
Conduction Thresholds |
Program controlled |
|
Test Current |
0-2.5mA |
|
Test Voltage |
0-5V |
|
Diode Testing |
The forward voltage is 5V |
|
Support LED |
All test points can control LED |
|
Firmware update |
Available |

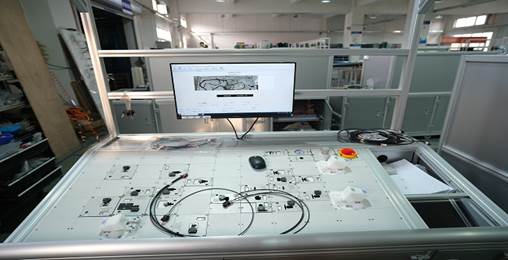

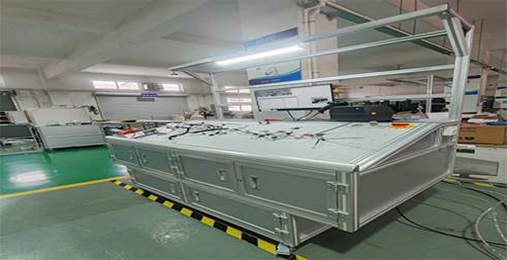

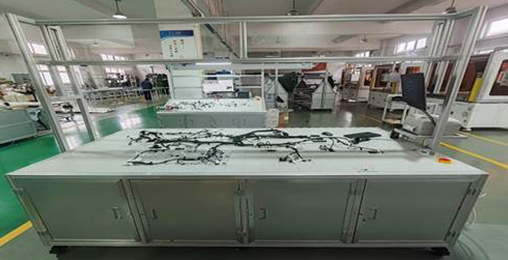

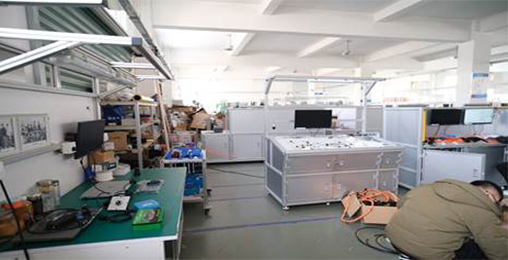

 Low voltage Wire harness Testing Bench Top in production 1 |
 Low voltage Wire harness Testing Bench Top in production 2 |
 Low voltage Wire harness Testing Bench Top in production 3 |
 Low voltage Wire harness Testing Bench Top in production 4 |

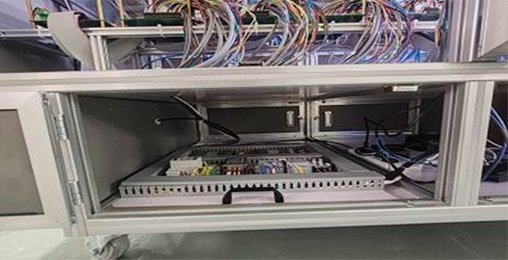

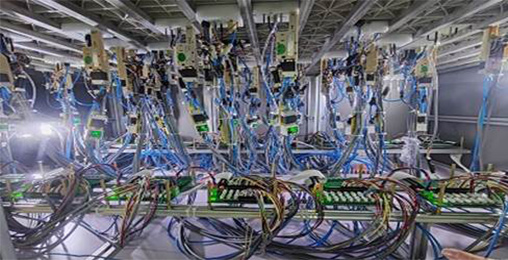

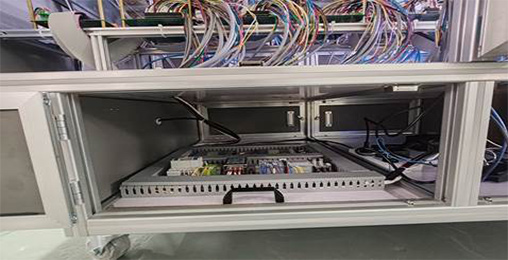

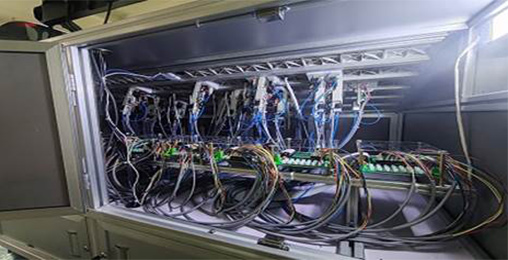

 Inner side of Low voltage wire harness Testing Bench Top 1 |
 Inner side of Low voltage wire harness Testing Bench Top 2 |
 Inner side of Low voltage wire harness Testing Bench Top 3 |
 Inner side of Low voltage wire harness Testing Bench Top 4 |
