Product Name |
High Voltage Wire Harness Testing Bench Top |
|
Power |
Electricity |
|
Type |
OEM/Customized |
|
Brand Name |
Cleanknow/Customized |
|
Model Number |
|
|
Display |
Monitor Size on demand |
|
Interface |
USB Interface/Manual |
Function and brief characteristics:
1: Equipped with over voltage protection, over current protection, leakage protection, which can greatly protect the safety of operator;
2. Arbitrary point to point testing;
3. Humanized software operation interface to help administrators to edit quick test procedures;
4. With administrator and operator double password , effectively ensure the control and security
of the test program;
5. Synchronous recording of test data helps customers promptly understand product quality;
6. Printer function, freely to edit printing content;
7. Bar code scanning automatically loads test file and scan code test;
8. Voice broadcasting of test results.
Technical Specifications and Data:
|
AC |
Output Voltage |
|
|
Output |
0.05-5Kv |
|
|
Measurement Accuracy |
1% + 5v |
|
|
Display Accuracy |
2 V |
|
|
Frequency |
50Hz/60Hz |
|
|
Power |
150VA Max. |
|
|
DC |
|
|
|
Output |
0.05-6Kv |
|
|
Measurement Accuracy |
1% + 5v |
|
|
Display Accuracy |
2 V |
|
|
Power |
60 VA Max. |
|
|
IR |
Output |
0.05-1Kv |
|
Measurement Accuracy |
1% + 5v |
|
|
Display Accuracy |
2 V |
|
|
Insulation Resistance |
||
|
IR |
Voltage |
DC range: 0.05 - 1kV, voltage accuracy: 1.5% ± 5V |
|
Measurement Range |
1MΩ-50GΩ |
|
|
Measurement Display Accuracy |
0.1MΩ |
|
|
Measurement Accuracy |
≥500V: 1MΩ-1GΩ :±5%±10 counts, |
|
|
1GΩ-10GΩ :±10%±10 counts, |
||
|
10GΩ-50GΩ :±15%±10 counts; |
||
|
≤500V:0.1MΩ-1GΩ:±10%±10 counts |
||
|
Arc Test |
||
|
Setting method |
Programmable |
|
|
The range of cutting off current |
AC:1mA-15mA, DC: 1mA-10mA |
|
|
Detection time |
10µs approx |
|
|
Precision Resistance Test |
||
|
Continuity |
Setting Range 0.1-500K |
|
|
Resistance |
0.1-100KΩ; ±3%±0.1 |
|
|
100K-1MΩ; ±5% |
||
|
0.01-75Ω; ±3%±0.01 |
||

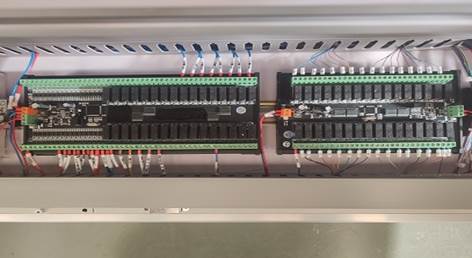

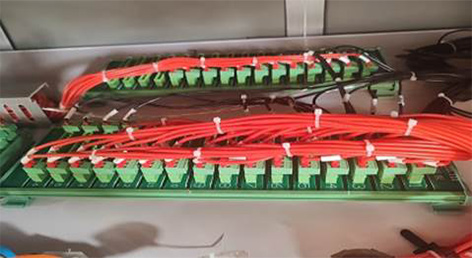

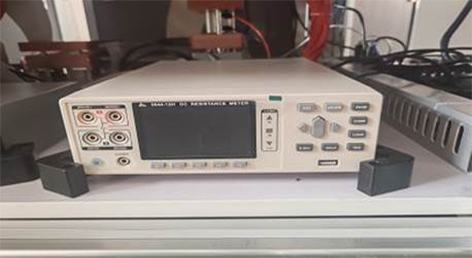

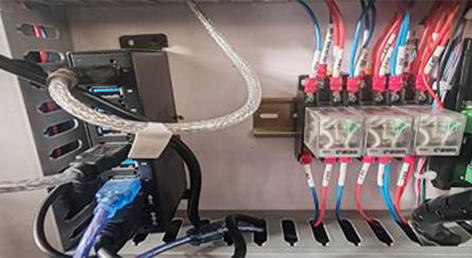

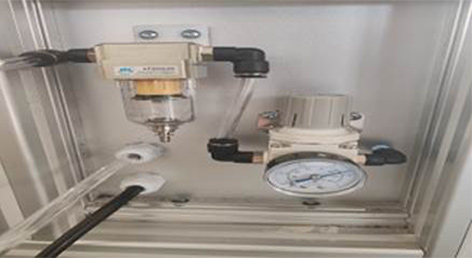

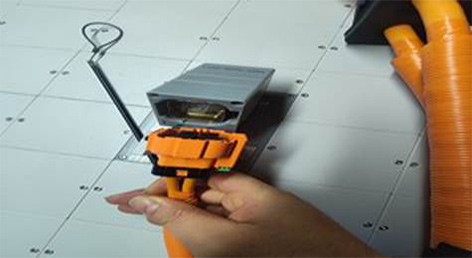

 Individual testing unit equipped in High Voltage Testing Bench Top 1 |
 Individual testing unit equipped in High Voltage Testing Bench Top 2 |
 Individual testing unit equipped in High Voltage Testing Bench Top 3 |
 Individual testing unit equipped in High Voltage Testing Bench Top 4 |
 Individual testing unit equipped in High Voltage Testing Bench Top 5 |
 Individual testing unit equipped in High Voltage Testing Bench Top 6 |
 Individual testing unit equipped in High Voltage Testing Bench Top 7 |
 Individual testing unit equipped in High Voltage Testing Bench Top 8 |

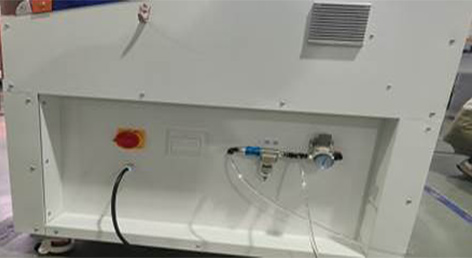

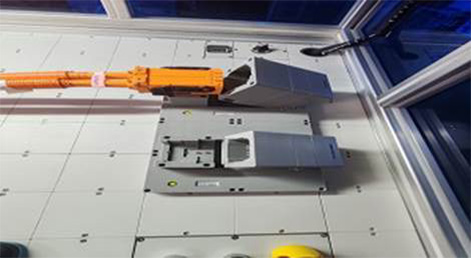

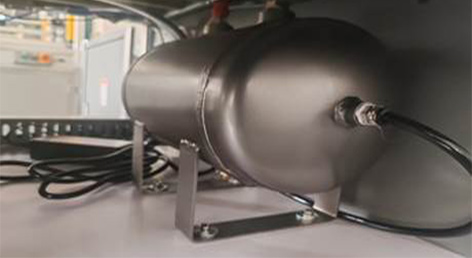

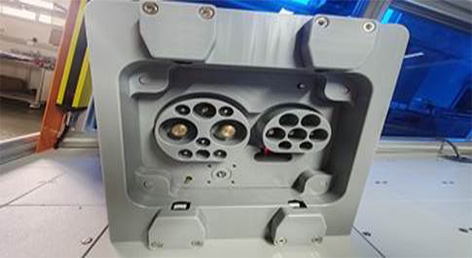

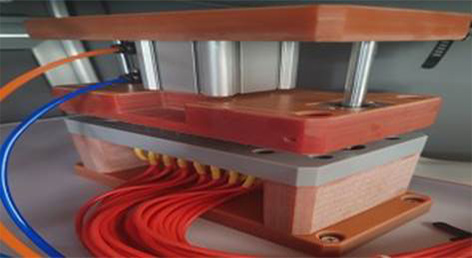

 Part of High voltage Testing Bench Top 1 |
 Part of High voltage Testing Bench Top 2 |
 Part of High voltage Testing Bench Top 3 |

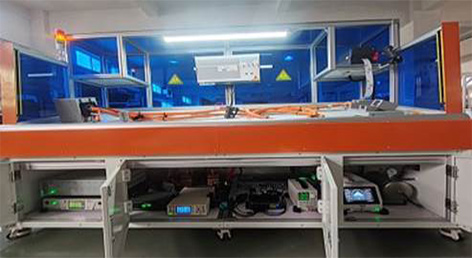

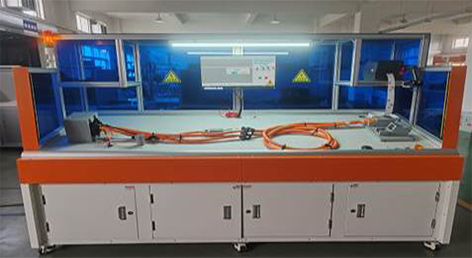

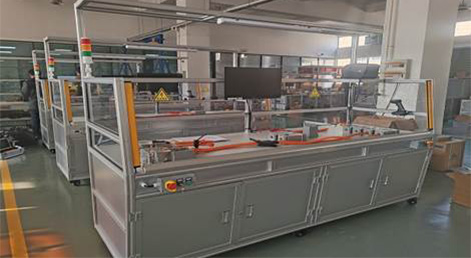

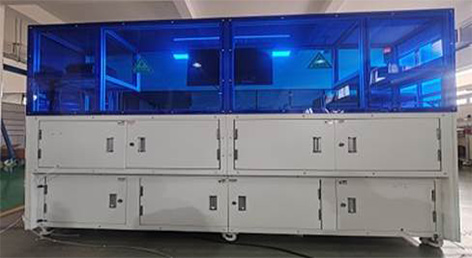

 High voltage Wire harness Testing Bench Top in production 1 |
