Product Name |
Clip operation Instructing & Testing Bench Top |
|
Power |
Electricity |
|
Type |
OEM/Customized |
|
Brand Name |
Cleanknow/Customized |
|
Model Number |
SHQN |
|
Display |
Monitor Size on demand |
|
Interface |
USB Interface/Manual |
Specification and working environment:
|
Item |
Specification & Working environment |
|
Basic Bench Top size(Reference size) |
LXW=4000X1200MM (Scalable) |
|
Testing points |
128-3072 points |
|
Ambient temperature |
0℃~～40℃ |
|
Relative humidity |
<85%RH |
|
Operation voltage |
AC220+22V 50+1HZ 10A |
|
Air conditions requirement |
No corrosive gas, well ventilated |
|
Lightness requirement |
Away from strong magnetic fields and direct sunlight |
|
Location |
No less than 600mm from the wall, no less than 1000mm from heating equipment |
|
Equipment grounding |
Well grounded |
Bench top function view:
1: KSK function
2: Self learn of each clip and can be self defined
3: Combine different clip modules to compose a new testing module
4: Direct log in the testing procedure by scanning QR code of a wire harness
5: The interface will promptly show error information if any error occurs during the
testing process.
The error information will automatically refresh after the correct revision
6: Each testing result will be saved in the database
7: Indicators on the bench top will indicate the wrong positioning of plugs and the
fault points
8: After passing the testing, the whole wire harness will be ejected off, as long as printing the qualified label
Technical setting:
1: Hardware Setting up
2: Hardware self-inspection
3: Module editing
4: Program module editing
5: Testing editing

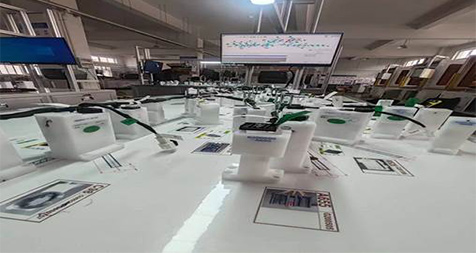

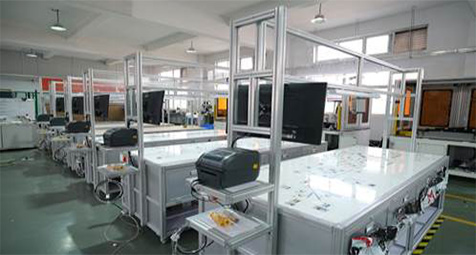

 Clip Bench Top(Table) in production 1 |

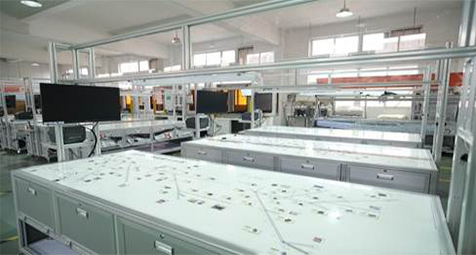

 Clip Bench Top(Table) in production 2 |

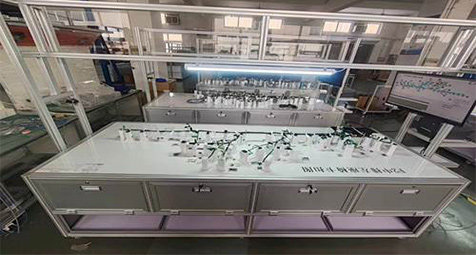

 Clip Bench Top(Table) in production 3 |

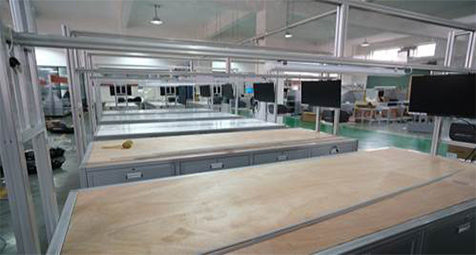

 Clip Bench Top(Table) in production 4 |

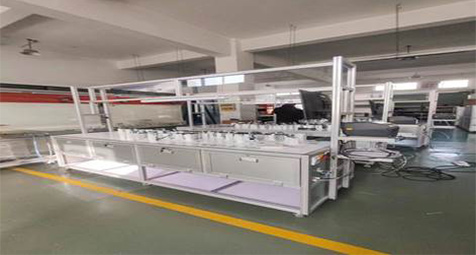

 Clip Bench Top(Table) in production 5 |

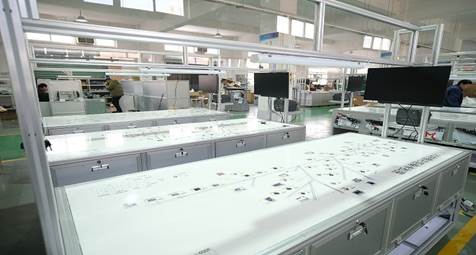

 Clip Bench Top(Table) in production 6 |

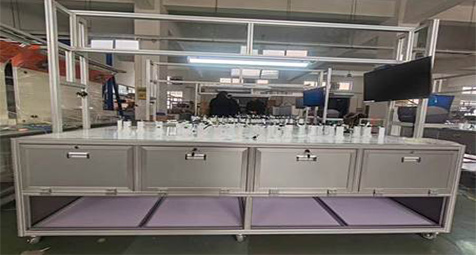

 Clip Bench Top(Table) in production 7 |

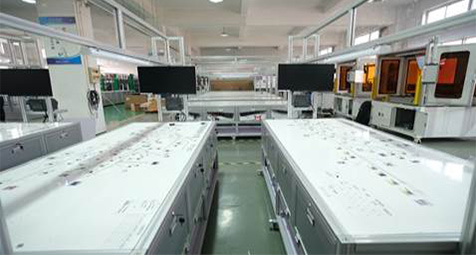

 Clip Bench Top(Table) in production 8 |
